Description

Jacketed glass reactor is with double glass design, the reaction kettle placed with reaction

menstruum can do the mixing reaction, and the interlayer can be added with different cold and

heat sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction.

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a

controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one

tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with

either one or two jackets, a reactor uses temperature differentials created by a chiller to change

it’s internal environment. Reaction vessels also operate under vacuum making them ideal for any

atmospheric sensitive applications. They can be made out of glass and range in volume from 1L

to 200L.

FEATURES

1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.

2. Wide range of temperature operations, from -60°C to 250°C.

3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature

measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and

stability, and continuous work.

6. Heavy duty stainless steel supporting framework with lockable casters for mobility and

stability. (whole support and glass vessel shipped pre-assembled)

7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide

range of viscous materials. multi-layer stirring blades is optional.

8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.

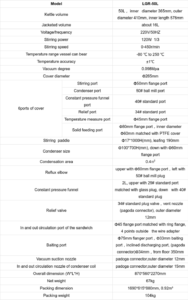

SPECIFICATIONS
